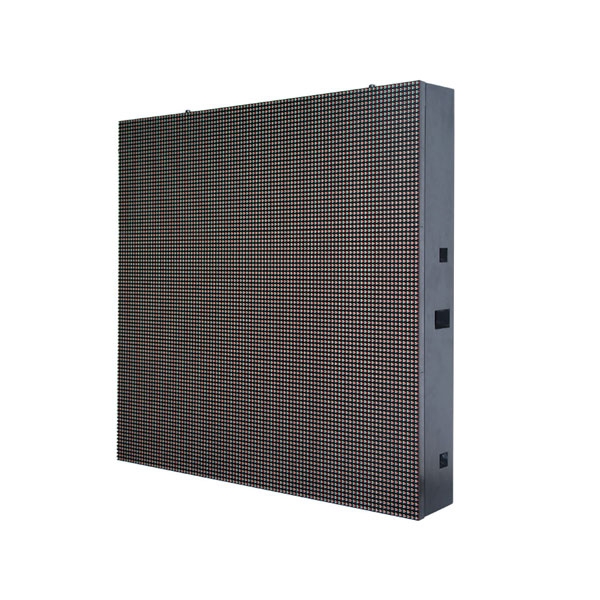

DIP-outdoor advertisement

Reliable quality assurance.

High brightness but with low consumption.

Anti-UV module mask to protect high temperature and salty area .

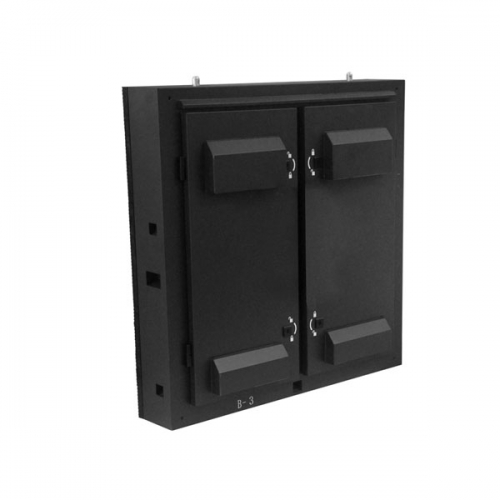

Private cabinet design ensure its super protection performance.

Fixed	AD-10D	AD-16D	AD-20D
Pixel Pitch (mm)	10	16	20
Pixel Density (dot/㎡ )	10,000	3,906	2,500
LED Type	DIP346	DIP346	DIP346
Module Size (W x H x D)mm	160x160x33	320x320x27	320x320x27
Module Resolution (W x H)	16x16	20x20	16x16
Module Weight (Kg)	0.56	1.6	1.65
Power Consumption per Module (W)	12	40	50
Driver Mode (Scan)	1/4	Static	Static
Brightness (cd/㎡ )	≥7,000	≥7,000	≥6,000
Grey Scale (bits)	14	14	14
Refresh Rate (Hz)	≥960	≥960	≥960
Cabinet Size (W x H x D)mm	960x960x154	960x960x155	960x960x156
Cabinet Resolution (W x H)	96x96	60x60	48 x 48
Cabinet Weight (Kg/㎡ )	55	55	55
Max Power Consumption (W/㎡ )	≤600	≤500	≤600
Average Power consumption (W/㎡ )	270	225	270
View Angle (Hº/Vº)	110/55	110/55	110/55
Mini View Distance (m)	10	16	20
Operating Use Temperature (℃)	-10℃~40℃
Storage Use Temperature (℃)	-20℃~50 ℃
Input Voltage (V)	100~240V
Input Power Frequency (Hz)	50Hz-60Hz
Failure Rate	<1/100,000
Signal Input Format	SDI, RGBHV, YUV,YC, Composite, HDMI,DVI, SD/HD-SDI etc.
Life Time (hrs)	100,000
IP Level (Front / Rear)	IP65 / IP54
