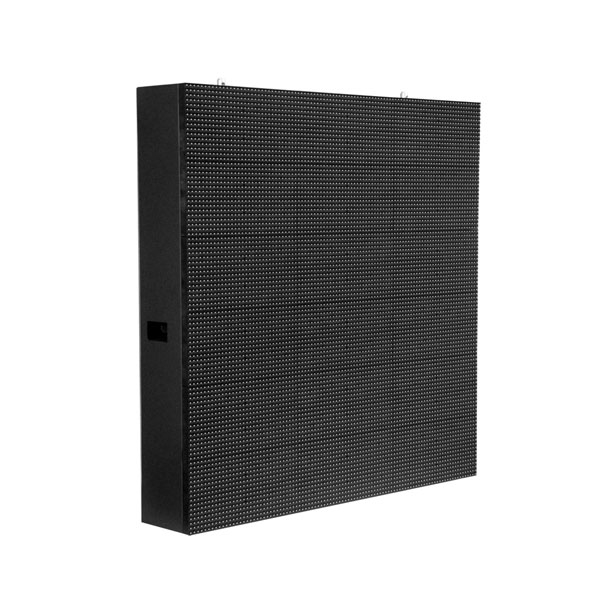

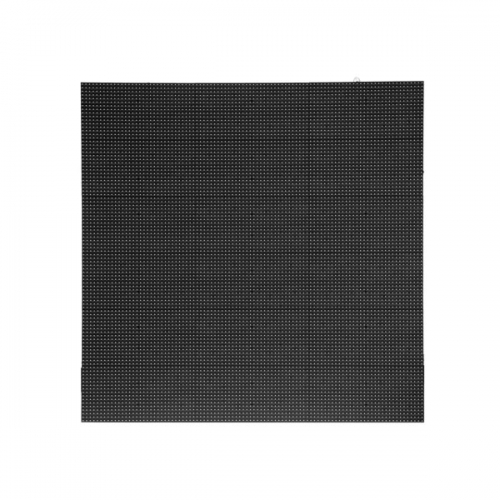

SMD-outdoor advertisement

Reliable quality assurance.

Wide viewing angle and perfect perfomance.

Anti-UV module mask to protect high temperature and salty area .

Private cabinet design ensure its super protection performance.

Fixed	ODS-4	ODS-5	ODS-6	ODS-8	ODS-10
Pixel Pitch (mm)	4	5	6	8	10
Pixel Density (dot/㎡ )	62,500	40,000	2,777	1.625	1,000
LED Type	SMD1921	SMD3535	SMD3535	SMD3535	SMD3535
Module Size (W x H x D)mm	256x128x33	160x160x28	192x192x27	256x128x27	320x160x27
Module Resolution (W x H)	64x32	32x32	32x32	32x32	32x16
Module Weight (Kg)	0.56	0.52	0.60	0.55	1.655
Power Consumption per Module (W)	30	18	32	28	28
Driver Mode (Scan)	1/8	1/8	1/8	1/4	1/8
Brightness (cd/㎡ )	≥5,500	≥5,500	≥5,500	≥5,500	≥5,500
Grey Scale (bits)	14	14	14	14	14
Refresh Rate (Hz)	≥1920	≥1920	≥1920	≥1920	≥1920
Cabinet Size (W x H x D)mm	512x512x150	960x960x150	960x960x150	1024x1024x150	960x960x156
Cabinet Resolution (W x H)	128x128	192x192	160x160	128x128	96 x 96
Cabinet Weight (Kg/㎡ )	55	55	55	55	55
Max Power Consumption (W/㎡ )	≤800	≤720	≤700	≤700	≤700
Average Power consumption (W/㎡ )	330	300	280	280	270
View Angle (Hº/Vº)	120/120	120/120	120/120	120/120	120/120
Mini View Distance (m)	4	5	6	8	10
Operating Use Temperature (℃)	-10℃~40℃
Storage Use Temperature (℃)	-20℃~50 ℃
Input Voltage (V)	100~240V
Input Power Frequency (Hz)	50Hz-60Hz
Failure Rate	<1/100,000
Signal Input Format	SDI, HDMI,DVI, SD/HD-SDI etc.
Life Time (hrs)	100,000
IP Level (Front / Rear)	IP65 / IP54
