Light Thin outdoor led display

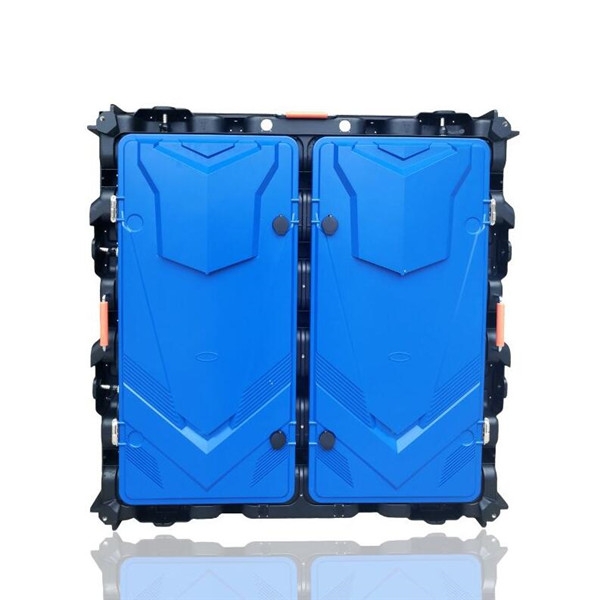

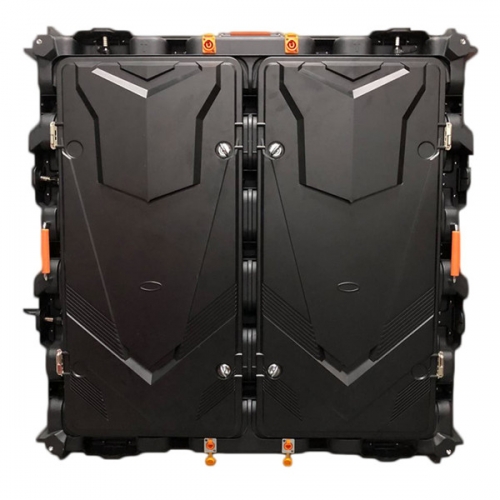

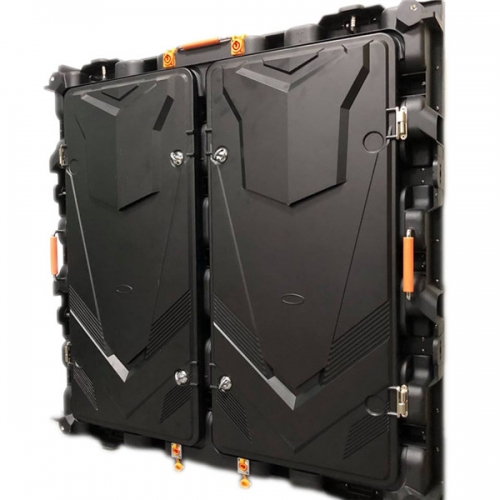

Light and thin, cabinet with fast lock

Anti-UV module mask to protect high temperature and salty area .

Cabinet can be used for outdoor stage event screen. hanging

Cabinet can add back bracket, used as the stadium parameter led screen

Fixed	OD-4	OD-5	OD-6	OD-8	ODS-10
Pixel Pitch (mm)	4	5	6.67	8	10
Pixel Density (dot/㎡ )	62,500	40,000	22,500	1.5625	1,000
LED Type	SMD1921	SMD3535	SMD3535	SMD3535	SMD3535
Module Size (W x H x D)mm	320x160x33	320x160x28	320x160x27	320x160x27	320x160x27
Module Resolution (W x H)	80x40	64x32	48x24	40x20	32x16
Module Weight (Kg)	1.5	1.5	1.5	1.5	1.5
Power Consumption per Module (W)	30	18	32	28	28
Driver Mode (Scan)	1/10	1/8	1/6	1/5	1/2
Brightness (cd/㎡ )	≥5,500	≥5,500	≥5,500	≥5,500	≥5,500
Grey Scale (bits)	14	14	14	14	14
Refresh Rate (Hz)	≥1920	≥1920	≥1920	≥1920	≥1920
Cabinet Size (W x H x D)mm	960x960x85	960x960x85	960x960x85	960x960x85	960x960x85
Cabinet Resolution (W x H)	240x240	192x192	144x144	120x120	96 x 96
Cabinet Weight (Kg/㎡ )	40	40	40	40	40
Max Power Consumption (W/㎡ )	≤730	≤720	≤700	≤700	≤700
Average Power consumption (W/㎡ )	330	300	280	280	270
View Angle (Hº/Vº)	120/120	120/120	120/120	120/120	120/120
Mini View Distance (m)	4	5	6	8	10
Operating Use Temperature (℃)	-10℃~40℃
Storage Use Temperature (℃)	-20℃~50 ℃
Input Voltage (V)	100~240V
Input Power Frequency (Hz)	50Hz-60Hz
Failure Rate	<1/100,000
Signal Input Format	SDI, HDMI,DVI, SD/HD-SDI etc.
Life Time (hrs)	100,000
IP Level (Front / Rear)	IP65 / IP54
