| Fixed | S1.2 | S1.5 | IS1.875 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.2mm | 1.5mm | 1.875mm |
| Pixel Density (dot/㎡ ) | 693,889 | 444,889 | 284,089 |
| LED Type | SMD3in1 | SMD3in1 | SMD3in1 |
| Driver Mode (Scan) | 1/64 | 1/52 | 1/32 |
| Brightness (cd/㎡ ) | ≥800 | ≥800 | ≥800 |
| Grey Scale (bits) | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 |
| Cabinet Size (W x H)mm | 300*60mm / 600*60mm / 900*60mm | ||
| Module Size (W x H) | 150x60 | 150x60 | 150x60 |
| Cabinet Weight (Kg/㎡ ) | 0.8 | 0.8 | 0.8 |
| Max Power Consumption (W/pc ) | ≤7 | ≤7 | ≤7 |
| Average Power consumption (W/pc ) | 4 | 4 | 4 |
| View Angle (Hº/Vº) | 160 | 160 | 160 |
| Mini View Distance (m) | 1 | 1 | 1.5 |
| Operating Use Temperature (℃) | -10℃~40℃ | ||
| Storage Use Temperature (℃) | -20℃~50 ℃ | ||
| Input Voltage (V) | 100~240V | ||
| Input Power Frequency (Hz) | 50Hz-60Hz | ||
| Failure Rate | <1/100,000 | ||
| Signal Input Format | SDI, RGBHV, YUV,YC, Composite, HDMI,DVI, SD/HD-SDI etc. | ||
| Life Time (hrs) | 100,000 | ||
| IP Level (Front / Rear) | IP42 | ||
Indoor fixed display
Outdoor fixed display
Indoor rental display
Outdoor rental display
Small pixel display
Creative display

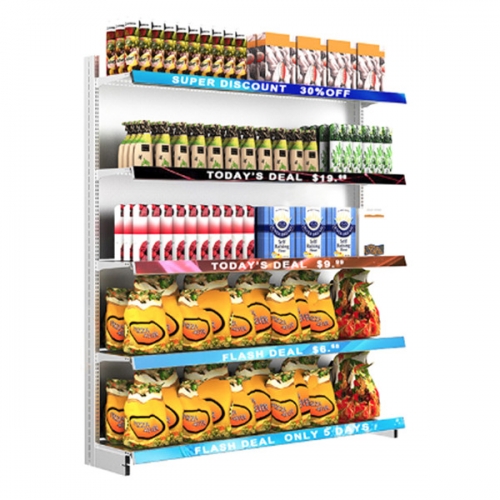

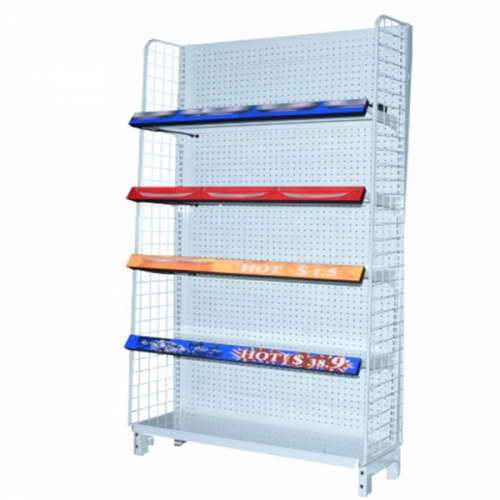

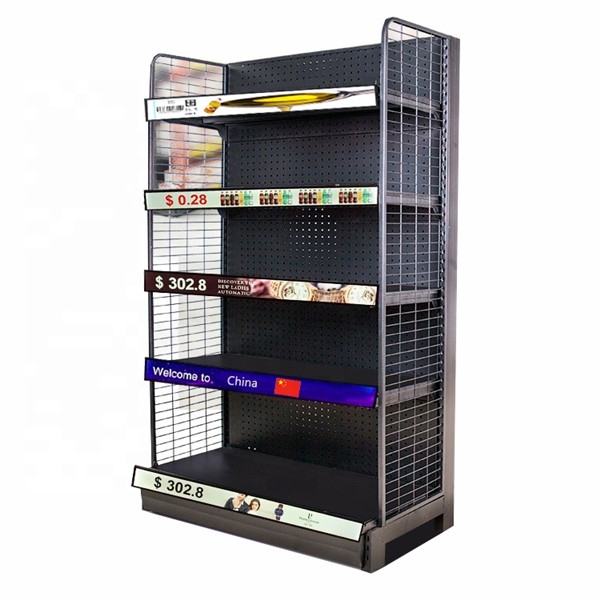

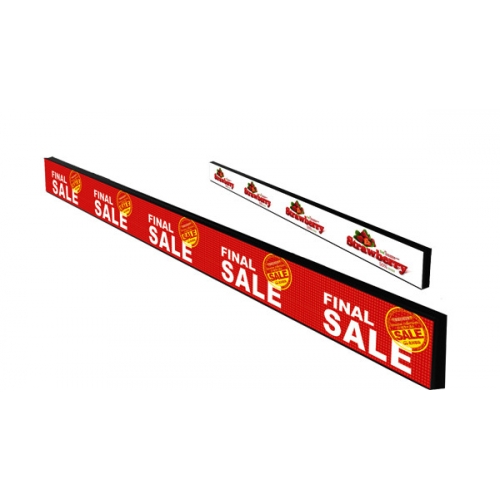

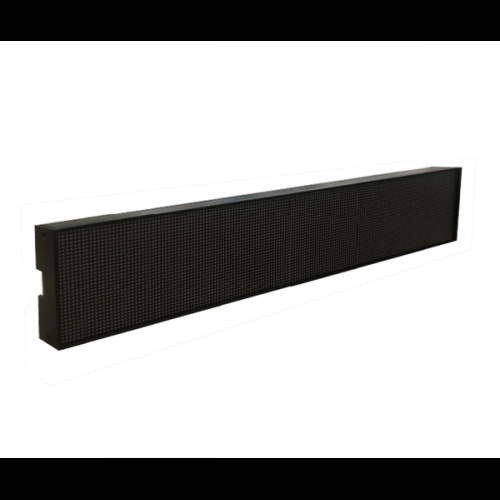

Shelf LED screen
Super slim in depth and light in weight.
22mm thickness ,thickest in the whole market, easy to install and move.
Multiple installation modes, such as stand, wall-mounted and etc.
Plug-in display, simple operation.
Multiple linkage modes, such as single display application, cascaded application and creative application, etc.
USB/ Wi-Fi/ HDMI / cable connection; mobile phone & PC quick management & publish.
LAN integrated publish & remote publish via internet.
Calibration data saved on modules, recover factory settings in 5s.
